SUM90N08-7m6P

N-Channel MOSFET

SUM90N08-7m6P Features

* TrenchFET® Power MOSFETS

* 175 °C Junction Temperature

* 100 % Rg and UIS Tested APPLICATIONS

* Power Supply - Secondary Synchronous Rectification

* Industrial TO-263 D RoHS COMPLIANT G DS Top View Ordering Information: SUM90N08-7m6P-E3 (Lead (Pb)-free)

SUM90N08-7m6P Datasheet (104.54 KB)

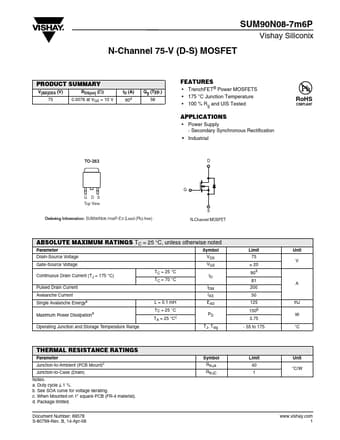

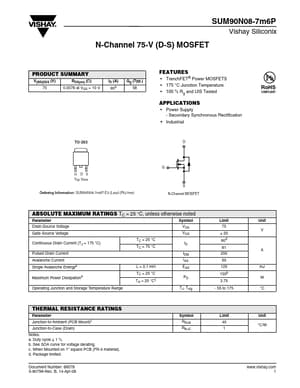

Preview of SUM90N08-7m6P PDF

Datasheet Details

Part number:

SUM90N08-7m6P

Manufacturer:

Vishay ↗

File Size:

104.54 KB

Description:

N-channel mosfet.
SUM90N08-7m6P Vishay Siliconix N-Channel 75-V (D-S) MOSFET PRODUCT SUMMARY V(BR)DSS (V) RDS(on) (Ω) 75 0.0076 at VGS = 10 V ID (A) 90d Qg (Typ.).
