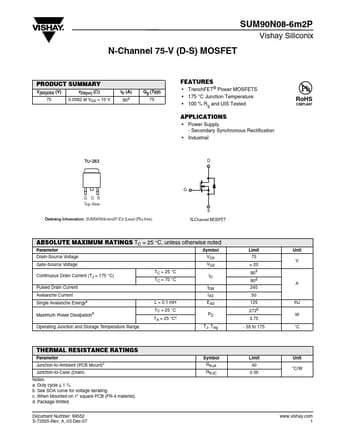

SUM90N08-6m2P Datasheet, Mosfet, Vishay

SUM90N08-6m2P Features

• Mosfet
• TrenchFET® Power MOSFETS
• 175 °C Junction Temperature
• 100 % Rg and UIS Tested APPLICATIONS
• Power Supply - Secondary Synchronous Rectification

PDF File Details

Part number:

SUM90N08-6m2P

Manufacturer:

Vishay ↗

File Size:

104.76kb

Download:

📄 Datasheet

Description:

N-channel 75-v (d-s) mosfet.

SUM90N08-6m2P Application

• Applications
• Power Supply - Secondary Synchronous Rectification
• Industrial TO-263 D RoHS COMPLIANT G DS Top View Ordering In
