SiSS80DN - N-Channel 20V MOSFET

SiSS80DN Description

www.vishay.com SiSS80DN Vishay Siliconix N-Channel 20 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT SU.

SiSS80DN Features

* TrenchFET® Gen IV power MOSFET
* Less than 0.92 mΩ in a package footprint of 10.89 mm2
* 2.5 V rated RDS(on)
* Optimized Qg, Qgd, and Qgd/Qgs ratio reduce switching related power loss
* 100 % Rg and UIS tested
* Material categorization: for definitio

SiSS80DN Applications

* Synchronous rectification
* Synchronous buck converter
* Battery management
* Load switching D G N-Channel MOSFET S ORDERING INFORMATION Package Lead (Pb)-free and halogen-free Lead (Pb)-free and halogen-free, BLR and IOL PowerPAK 1212-8S SiSS80DN-T1-GE3 SISS80DN

📥 Download Datasheet

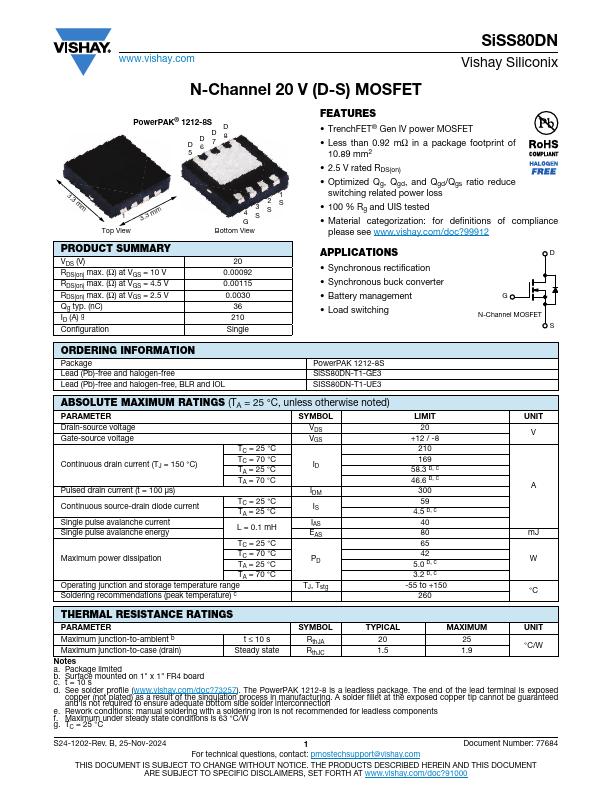

Preview of SiSS80DN PDF

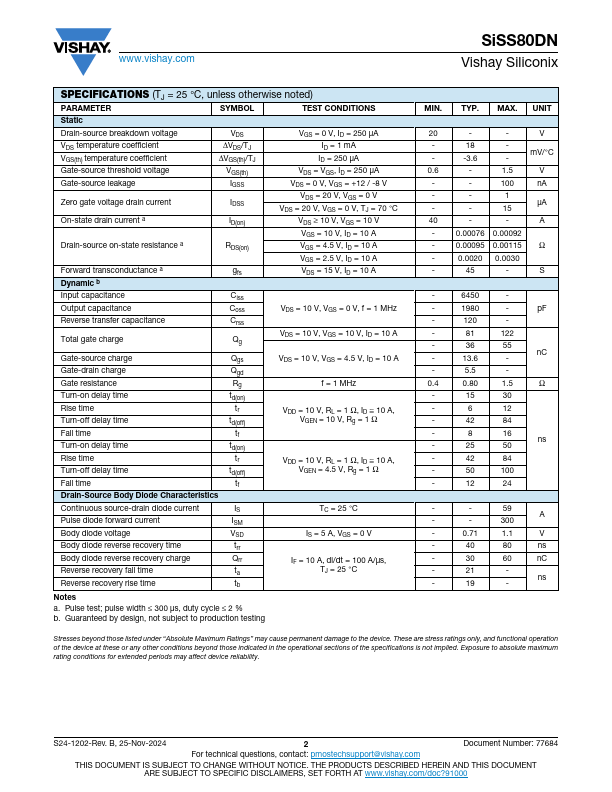

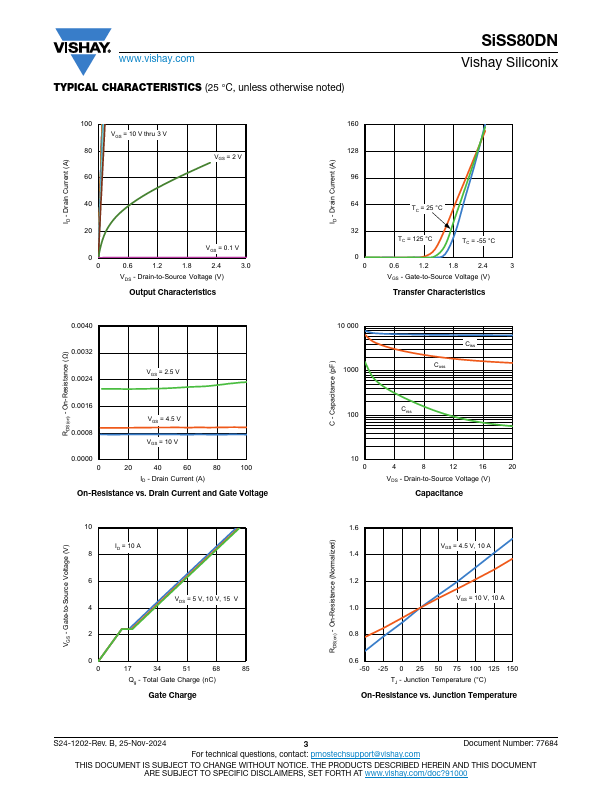

datasheet Preview Page 2 datasheet Preview Page 3
