TNPW1206, TNPW0402 - High Stability Thin Film Chip Resistors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TNPW1206, TNPW0402. Please refer to the document for exact specifications by model.

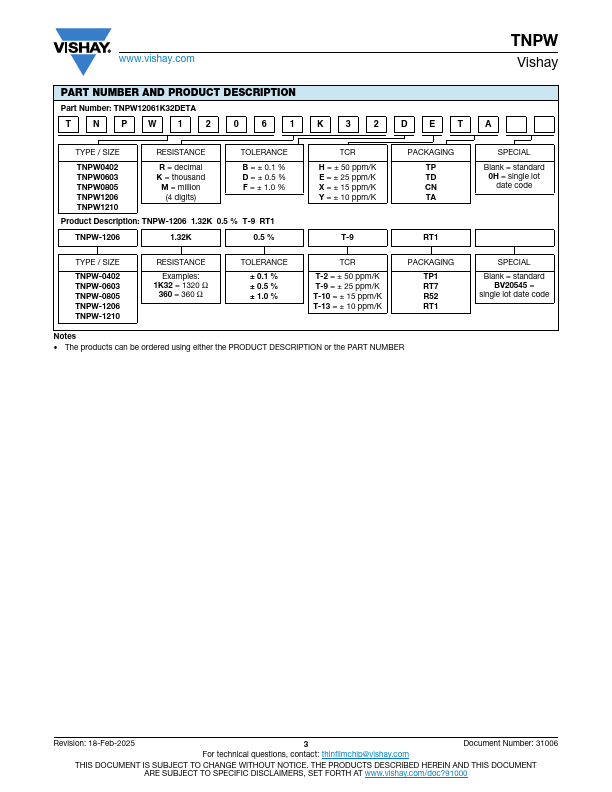

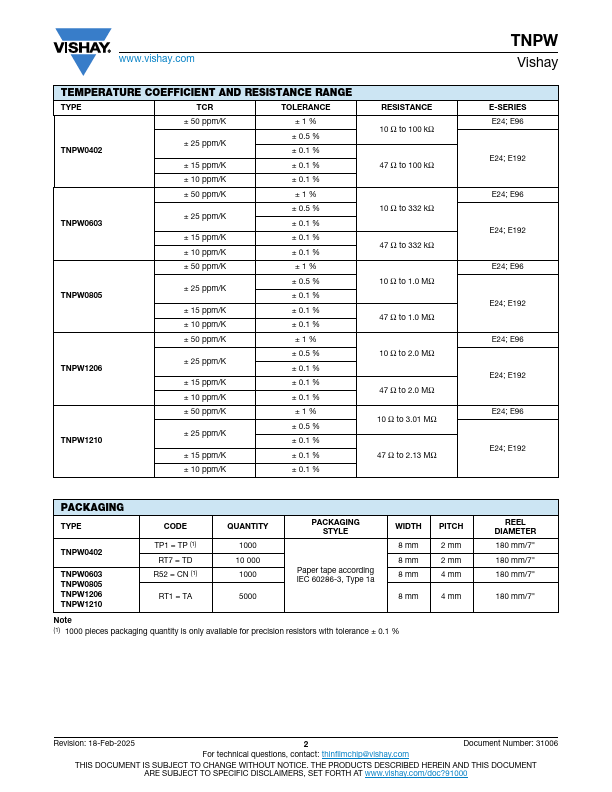

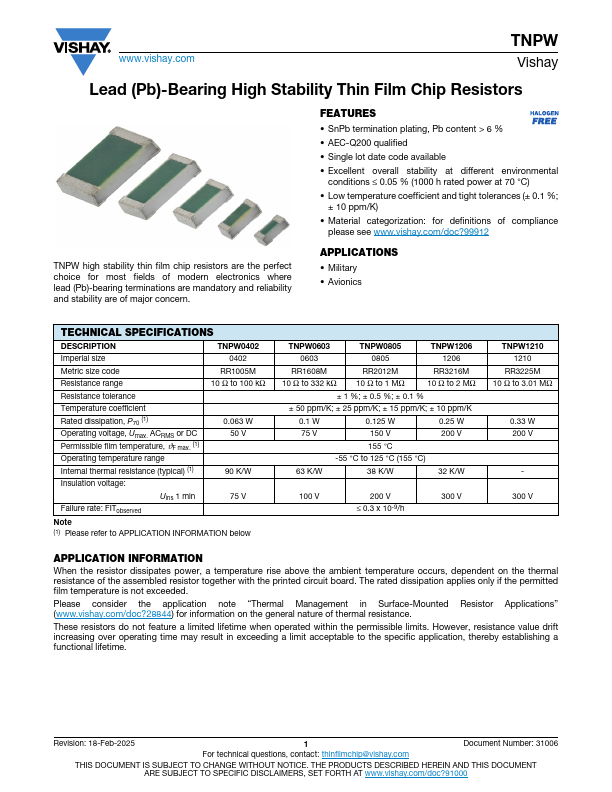

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TNPW1206, TNPW0402
Manufacturer Vishay
File Size 150.25 KB
Description High Stability Thin Film Chip Resistors
Datasheet download datasheet TNPW0402-Vishay.pdf
Note This datasheet PDF includes multiple part numbers: TNPW1206, TNPW0402.
Please refer to the document for exact specifications by model.

TNPW1206 Product details

Description

TNPW0402 Imperial size 0402 Metric size code RR1005M Resistance range 10 Ω to 100 kΩ Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax.ACRMS or DC Permissible film temperature, ϑF max.(1) Operating temperature range 0.063 W 50 V Internal thermal resistance (typical) (1) 90 K/W Insulation voltage: Failure rate: FITobserved Uins 1 min 75 V Note (1) Please refer to APPLICATION INFORMATION below TNPW0603 TNPW0805 TNPW1206 0603 08
