TNPW1210, TNPW0402 High Stability Thin Film Chip Resistors

Vishay

Description

www.vishay.com TNPW Vishay Lead (Pb)-Bearing High Stability Thin Film Chip Resistors TNPW high stability thin film chip resistors are the perfect c.
TNPW0402 Imperial size 0402 Metric size code RR1005M Resistance range 10 Ω to 100 kΩ Resistance tolerance Temperature coefficient Rated diss.

📥 Download Datasheet

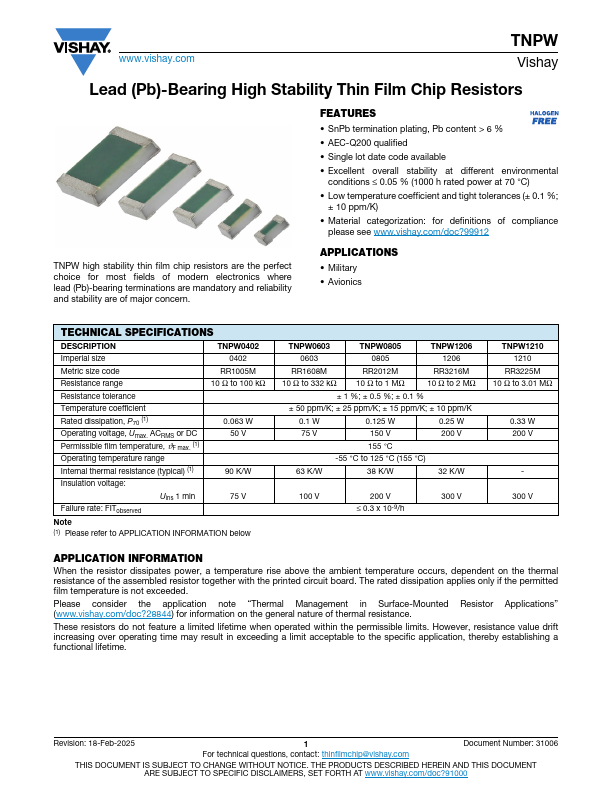

TNPW1210 Datasheet Preview — This datasheet PDF includes multiple part numbers: TNPW1210, TNPW0402. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TNPW1210, TNPW0402
Manufacturer: Vishay ↗
File Size: 150.25 KB
Datasheet: TNPW0402-Vishay.pdf
Description: High Stability Thin Film Chip Resistors
Note: This datasheet PDF includes multiple part numbers: TNPW1210, TNPW0402.
Please refer to the document for exact specifications by model.

Features

* SnPb termination plating, Pb content > 6 %
* AEC-Q200 qualified
* Single lot date code available
* Excellent overall stability at different environmental conditions ≤ 0.05 % (1000 h rated power at 70 °C)
* Low temperature coefficient and tight tolerances (±

Applications

* Military
