V12PM10 - Trench MOS Barrier Schottky Rectifier

Vishay

📥 Download Datasheet

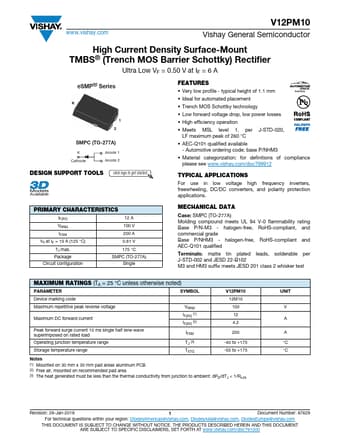

V12PM10 Datasheet Preview — Preview of V12PM10 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	V12PM10
Manufacturer	Vishay ↗
File Size	105.41 KB
Description	Trench MOS Barrier Schottky Rectifier
Datasheet	V12PM10-Vishay.pdf

V12PM10 Product details

Features

Very low profile - typical height of 1.1 mm Available.
Ideal for automated placement.
Trench MOS Schottky technology.
Low forward voltage drop, low power losses.
High efficiency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code; base P/NHM3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 TYPIC.
