V12PM12HM3, V12PM12-M3 High Current Density Surface Mount Trench MOS Barrier Schottky Rectifier

V12PM12HM3 Description

www.vishay.com V12PM12-M3, V12PM12HM3 Vishay General Semiconductor High Current Density Surface Mount Trench MOS Barrier Schottky Rectifier Ultra Lo.

V12PM12HM3 Features

* Very low profile - typical height of 1.1 mm Available
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak

V12PM12HM3 Applications

* For use in low voltage high frequency DC/DC converters, freewheeling, and polarity protection applications. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 12 A TJ max. Package 12 A 120 V 160 A 0.63 V 150 °C TO-277A (SMPC) Diode variation Single die MECHANICAL DATA Case: TO-277A (SMPC) Mo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V12PM12HM3, V12PM12-M3. Please refer to the document for exact specifications by model.

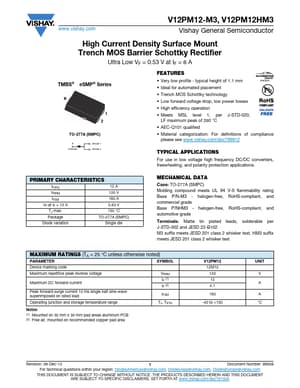

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V12PM12HM3, V12PM12-M3
Manufacturer
Vishay ↗
File Size
93.07 KB
Datasheet
V12PM12-M3-Vishay.pdf
Description
High Current Density Surface Mount Trench MOS Barrier Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: V12PM12HM3, V12PM12-M3.
Please refer to the document for exact specifications by model.
