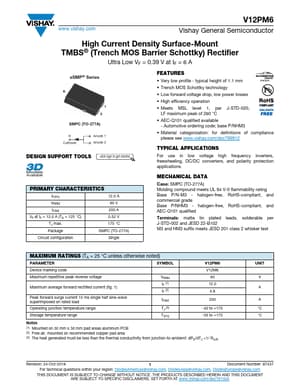

datasheet Preview Page 1 from Datasheet4u.com

V12PM6 Trench MOS Barrier Schottky Rectifier

www.vishay.com V12PM6 Vishay General Semiconductor High Current Density Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.

V12PM6-Vishay.pdf

V12PM6 Datasheet Preview — Preview of V12PM6 PDF

Datasheet Details

Part number:

V12PM6

Manufacturer:

Vishay ↗

File Size:

102.23 KB

Description:

Trench MOS Barrier Schottky Rectifier

Features

* Very low profile - typical height of 1.1 mm Available
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 qualified

Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: SMPC (TO-277A) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Base P/NHM3 - halogen-
