V12PM12, High Current Density Surface-Mount Rectifier

www.vishay.com V12PM12 Vishay General Semiconductor High Current Density Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = .

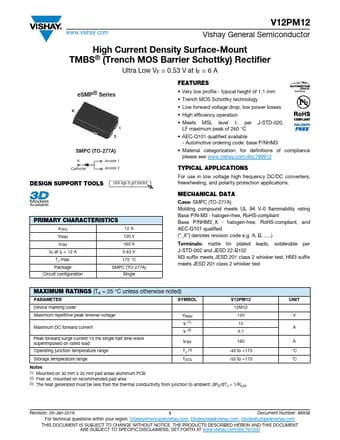

datasheet Preview Page 1 from Datasheet4u.com

V12PM12-Vishay.pdf

V12PM12 Datasheet Preview — Preview of V12PM12 PDF

Datasheet Details

Part number:

V12PM12

Manufacturer:

Vishay ↗

File Size:

109.12 KB

Description:

High Current Density Surface-Mount Rectifier

Features

* Very low profile - typical height of 1.1 mm Available
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 qualified

Applications

* For use in low voltage high frequency DC/DC converters, freewheeling, and polarity protection applications. Models Available PRIMARY CHARACTERISTICS IF(AV) 12 A VRRM 120 V IFSM VF at IF = 12 A 160 A 0.63 V TJ max. Package 175 °C SMPC (TO-277A) Circuit config
