V20M100M-E3, Dual High Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V20M100M-E3 Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.57 V at IF = 5 A T.

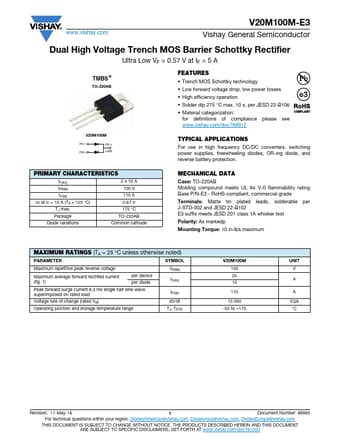

datasheet Preview Page 1 from Datasheet4u.com

V20M100M-E3-Vishay.pdf

V20M100M-E3 Datasheet Preview — Preview of V20M100M-E3 PDF

Datasheet Details

Part number:

V20M100M-E3

Manufacturer:

Vishay ↗

File Size:

96.07 KB

Description:

Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 V20M100M P

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 10 A (TA = 125 °C) TJ max. Package 2 x 10 A 100 V 110 A 0.67 V 175 °C TO-220AB Diode variations Common cat
