V20M120M-E3 Datasheet - Vishay

V20M120M-E3, Dual High Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V20M120M-E3 Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.58 V at IF = 5 A T.

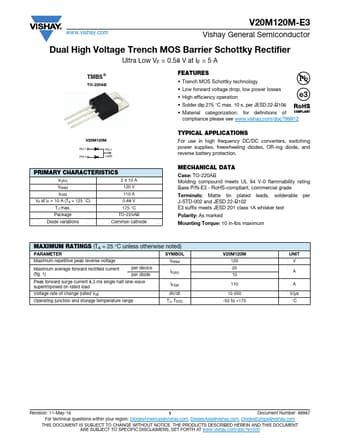

datasheet Preview Page 1 from Datasheet4u.com

V20M120M-E3-Vishay.pdf

V20M120M-E3 Datasheet Preview — Preview of V20M120M-E3 PDF

Datasheet Details

Part number:

V20M120M-E3

Manufacturer:

Vishay ↗

File Size:

93.72 KB

Description:

Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 V20M120M PI

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. MECHANICAL DATA Case: TO-220AB Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated lea
