V30120C-E3 Dual High Voltage Trench MOS Barrier Schottky Rectifier

V30120C-E3, VF30120C-E3, VB30120C-E3, VI30120C-E3 www.vishay.com Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifi.

V30120C-E3-Vishay.pdf

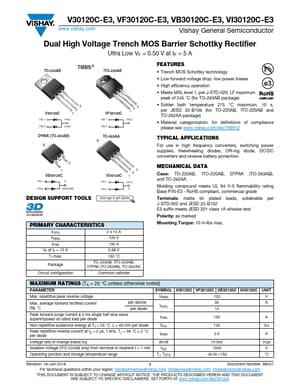

V30120C-E3 Datasheet Preview — Preview of V30120C-E3 PDF

Datasheet Details

Part number:

V30120C-E3

Manufacturer:

Vishay ↗

File Size:

214.00 KB

Description:

Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection. 2 1 VB30120C PIN 1 K PIN 2 HEATSINK VI30120C PIN 1 3 2 1 PIN 2 PIN 3 K PRIMARY
