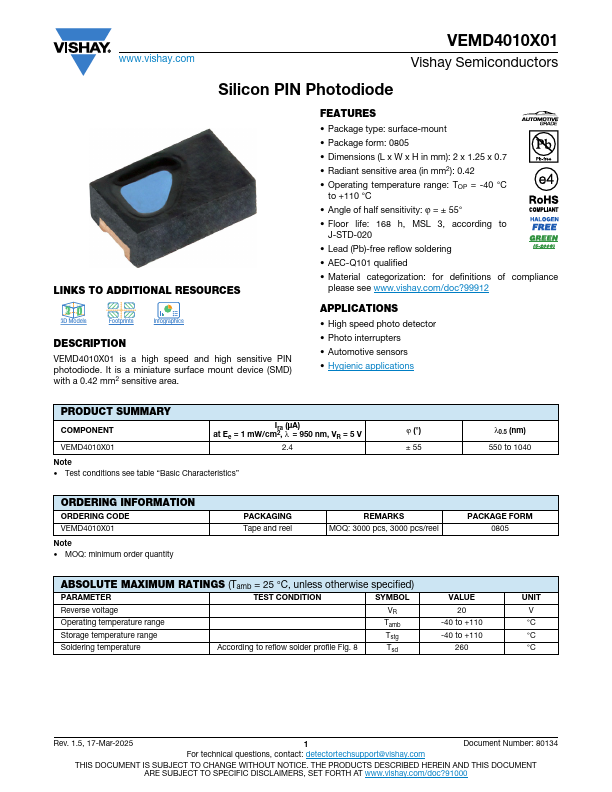

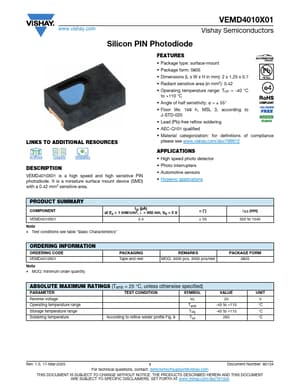

VEMD4010X01 Silicon PIN Photodiode

www.vishay.com VEMD4010X01 Vishay Semiconductors Silicon PIN Photodiode LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Footprints Infographics D.
VEMD4010X01 is a high speed and high sensitive PIN photodiode.

VEMD4010X01-Vishay.pdf

VEMD4010X01 Datasheet Preview — Preview of VEMD4010X01 PDF

Datasheet Details

Part number:

VEMD4010X01

Manufacturer:

Vishay ↗

File Size:

158.29 KB

Description:

Silicon PIN Photodiode

Features

* Package type: surface-mount
* Package form: 0805
* Dimensions (L x W x H in mm): 2 x 1.25 x 0.7
* Radiant sensitive area (in mm2): 0.42
* Operating temperature range: TOP = -40 °C to +110 °C
* Angle of half sensitivity: ϕ = ± 55°
* Floor life

Applications

* High speed photo detector
* Photo interrupters
* Automotive sensors
* Hygienic applications PRODUCT SUMMARY COMPONENT VEMD4010X01 Ira (μA) at Ee = 1 mW/cm2, λ = 950 nm, VR = 5 V 2.4 ϕ (°) ± 55 Note
* Test conditions see table “Basic Characteristics” λ0
