VEMD4200FX01 - Ambient Light Sensor

Vishay

📥 Download Datasheet

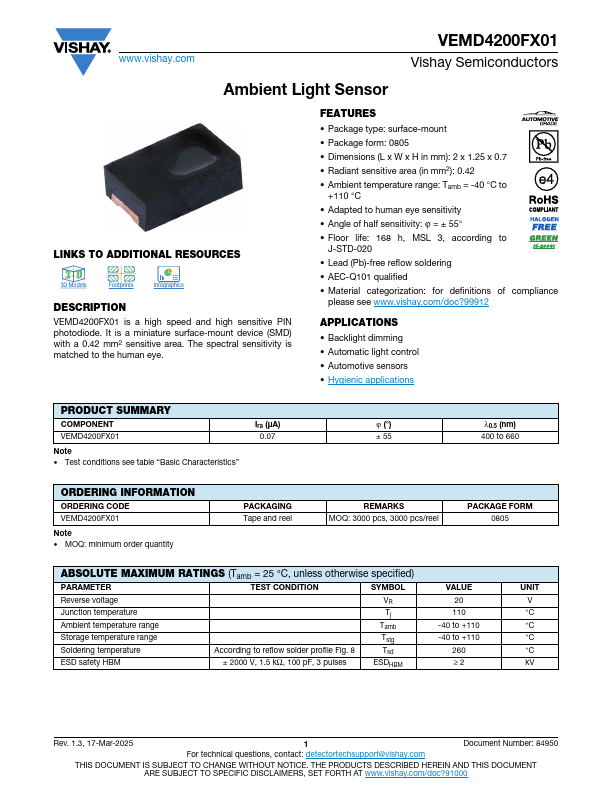

VEMD4200FX01 Datasheet Preview — Preview of VEMD4200FX01 PDF

datasheet Preview Page 2

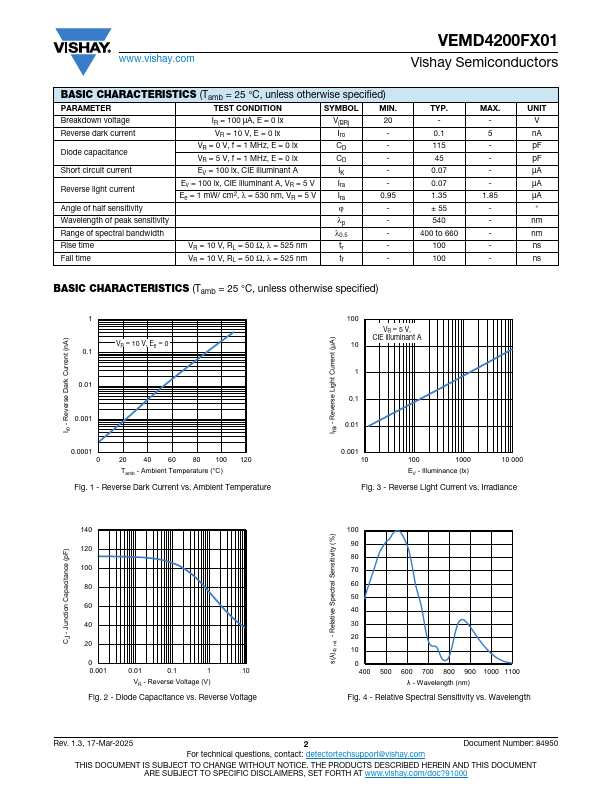

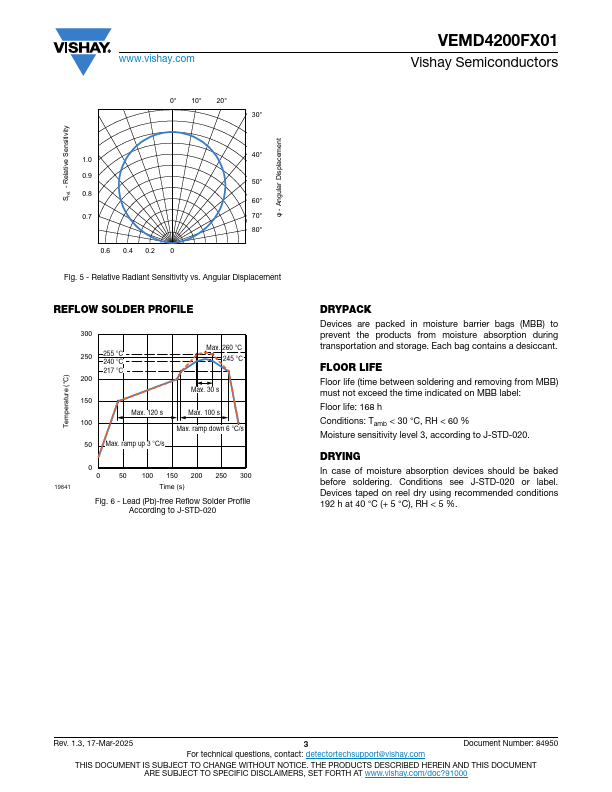

datasheet Preview Page 3

Datasheet Details

Part number	VEMD4200FX01
Manufacturer	Vishay
File Size	152.68 KB
Description	Ambient Light Sensor
Datasheet	VEMD4200FX01-Vishay.pdf

VEMD4200FX01 Product details

Description

VEMD4200FX01 is a high speed and high sensitive PIN photodiode.

Features

Package type: surface-mount.
Package form: 0805.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.7.
Radiant sensitive area (in mm2): 0.42.
Ambient temperature range: Tamb = -40 °C to +110 °C.
Adapted to human eye sensitivity.
Angle of half sensitivity: ϕ = ± 55°.
Floor life: 168 h, MSL 3, according to J-STD-020.
Lead (Pb)-free reflow soldering.
AEC-Q101 qualified.
Material categorization: for definitio.
