VEMD4110X01 - Silicon PIN Photodiode

Vishay

📥 Download Datasheet

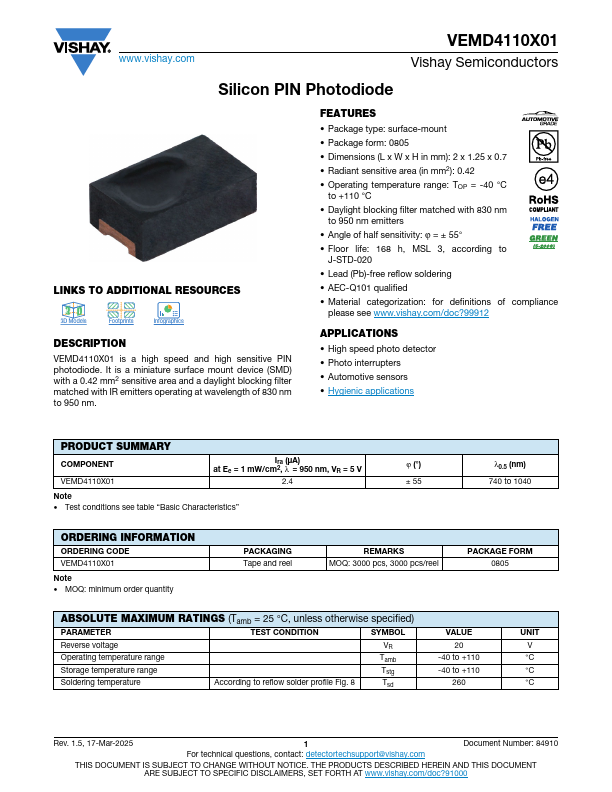

VEMD4110X01 Datasheet Preview — Preview of VEMD4110X01 PDF

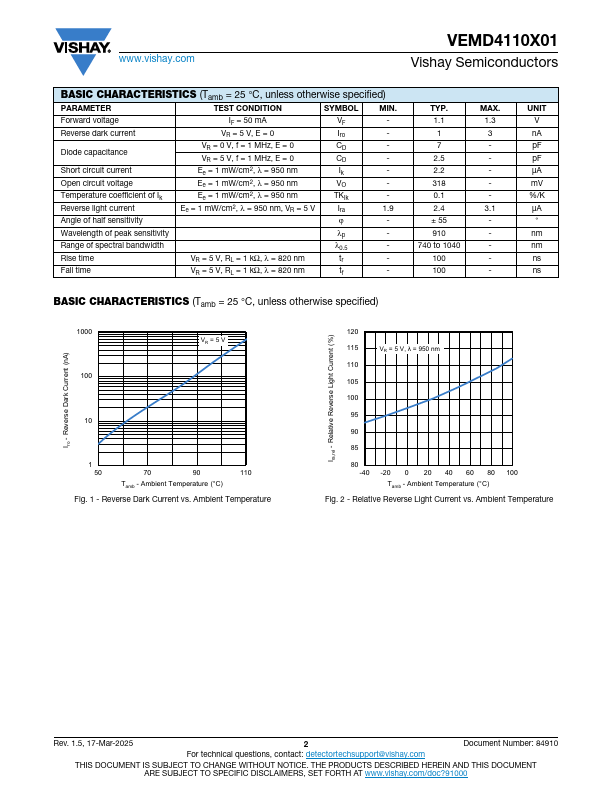

datasheet Preview Page 2

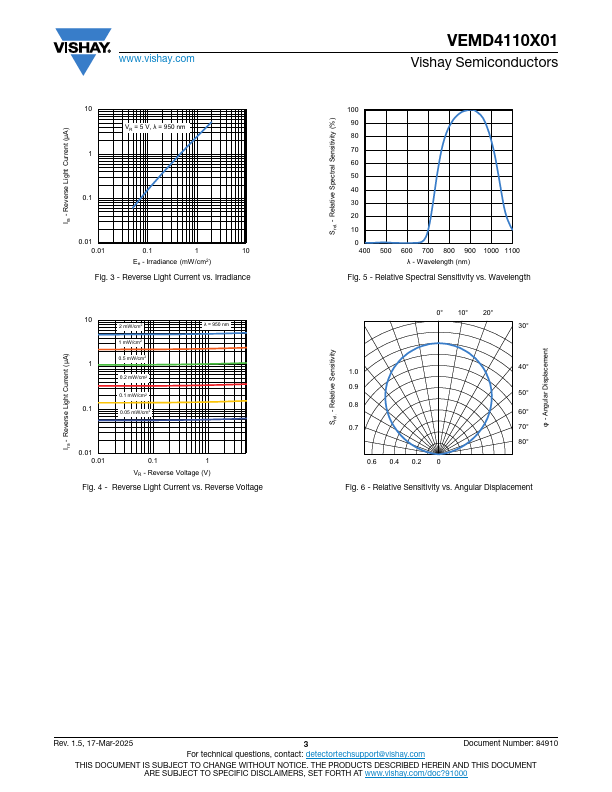

datasheet Preview Page 3

Datasheet Details

Part number	VEMD4110X01
Manufacturer	Vishay
File Size	153.16 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD4110X01-Vishay.pdf

VEMD4110X01 Product details

Description

VEMD4110X01 is a high speed and high sensitive PIN photodiode.

Features

Package type: surface-mount.
Package form: 0805.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.7.
Radiant sensitive area (in mm2): 0.42.
Operating temperature range: TOP = -40 °C to +110 °C.
Daylight blocking filter matched with 830 nm to 950 nm emitters.
Angle of half sensitivity: ϕ = ± 55°.
Floor life: 168 h, MSL 3, according to J-STD-020.
Lead (Pb)-free reflow soldering.
AEC-Q101 qualified.
Materi.
