VEMD4080X02, Silicon PIN Photodiode

www.vishay.com VEMD4080X02 Vishay Semiconductors Silicon PIN Photodiode LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Footprints Infographics D.
The VEMD4080X02 is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light.

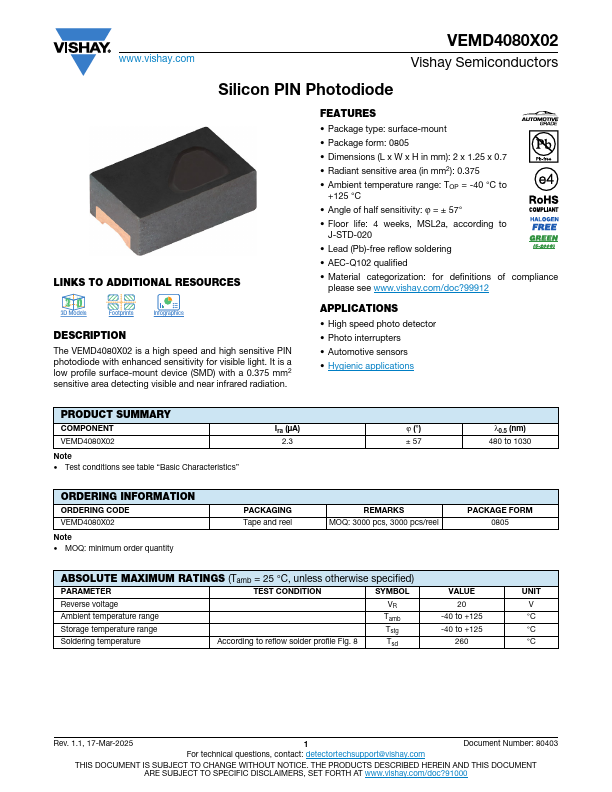

datasheet Preview Page 1 from Datasheet4u.com

VEMD4080X02-Vishay.pdf

VEMD4080X02 Datasheet Preview — Preview of VEMD4080X02 PDF

Datasheet Details

Part number:

VEMD4080X02

Manufacturer:

Vishay ↗

File Size:

155.35 KB

Description:

Silicon PIN Photodiode

Features

* Package type: surface-mount
* Package form: 0805
* Dimensions (L x W x H in mm): 2 x 1.25 x 0.7
* Radiant sensitive area (in mm2): 0.375
* Ambient temperature range: TOP = -40 °C to +125 °C
* Angle of half sensitivity: ϕ = ± 57°
* Floor life:

Applications

* High speed photo detector
* Photo interrupters
* Automotive sensors
* Hygienic applications PRODUCT SUMMARY COMPONENT VEMD4080X02 Note
* Test conditions see table “Basic Characteristics” Ira (μA) 2.3 ϕ (°) ± 57 λ0.5 (nm) 480 to 1030 ORDERING INFORMATION

VEMD4080X02 Distributors
