VESD05B1-02V - Single ESD-Protection Diode

Vishay

📥 Download Datasheet

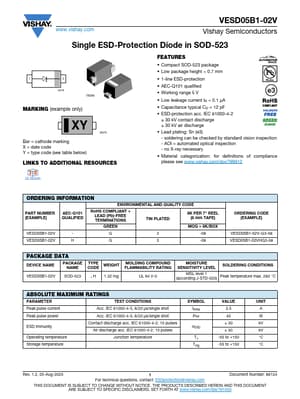

VESD05B1-02V Datasheet Preview — Preview of VESD05B1-02V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VESD05B1-02V
Manufacturer	Vishay
File Size	107.40 KB
Description	Single ESD-Protection Diode
Datasheet	VESD05B1-02V-Vishay.pdf

VESD05B1-02V Product details

Features

Compact SOD-523 package.
Low package height < 0.7 mm.
1-line ESD-protection.
AEC-Q101 qualified.
Working range 5 V.
Low leakage current IR < 0.1 μA.
Capacitance typical CD = 12 pF.
ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge.
Lead plating: Sn (e3) - soldering can be checked by standard vision inspection - AOI = automated optical inspection - no X-ray necessary.
Ma.
