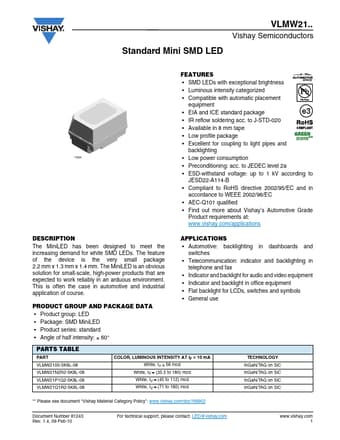

Description
The MiniLED has been designed to meet the increasing demand for white SMD LEDs.
Features
- SMD LEDs with exceptional brightness.
- Luminous intensity categorized.
- Compatible with automatic placement
equipment.
- EIA and ICE standard package.
- IR reflow soldering acc. to J-STD-020.
- Available in 8 mm tape.
- Low profile package.
- Excellent for coupling to light pipes and
backlighting 19226.
- Low power consumption.
- Preconditioning: acc. to JEDEC level 2a.
- ESD-withstand voltage: up to 1 kV according.
VLMW2100-5K8L-08-Vishay.pdf
