VLMW51P2Q3 - Power SMD LED PLCC2 Plus

Vishay

The VLMW51P2Q3 by Vishay is a Power SMD LED PLCC2 Plus. Below is the official datasheet preview.

📥 Download Datasheet

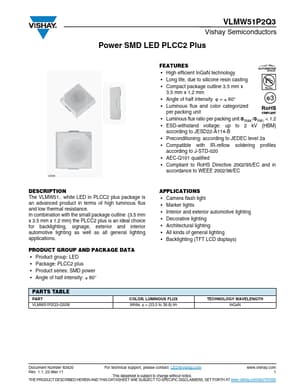

VLMW51P2Q3 Power SMD LED PLCC2 Plus by Vishay - Datasheet Preview — Official preview page of the VLMW51P2Q3 Power SMD LED PLCC2 Plus datasheet (Vishay).

Datasheet Details

Part number	VLMW51P2Q3
Manufacturer	Vishay
File Size	150.71 KB
Description	Power SMD LED PLCC2 Plus
Datasheet	VLMW51P2Q3-Vishay.pdf
Additional preview pages of the VLMW51P2Q3 datasheet.

VLMW51P2Q3 Product details

Description

The VLMW51..

Features

High efficient InGaN technology.
Long life, due to silicone resin casting.
Compact package outline 3.5 mm x 3.5 mm x 1.2 mm.
Angle of half intensity  = ± 60°.
Luminous flux and color categorized per packing unit.
Luminous flux ratio per packing unit max. /min. < 1.2.
ESD-withstand voltage: up to 2 kV (HBM) according to JESD22-A114-B.
Preconditioning: according to JEDEC level 2a.
Compatible with IR-reflow solderin.
