VOD3120AB 2.5A Output Current IGBT and MOSFET Driver

VOD3120AB Description

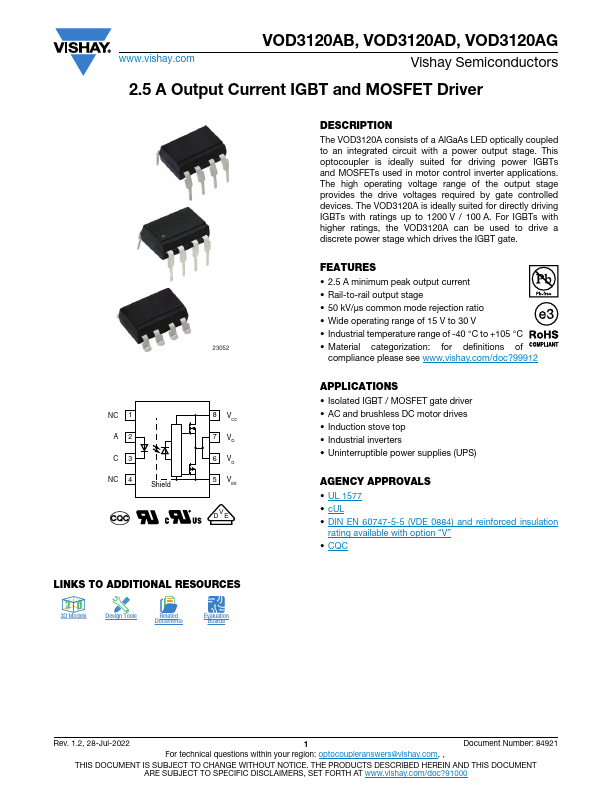

www.vishay.com VOD3120AB, VOD3120AD, VOD3120AG Vishay Semiconductors 2.5 A Output Current IGBT and MOSFET Driver 23052 NC 1 A2 C3 NC 4 Shield 8 .
The VOD3120A consists of a AlGaAs LED optically coupled to an integrated circuit with a power output stage.

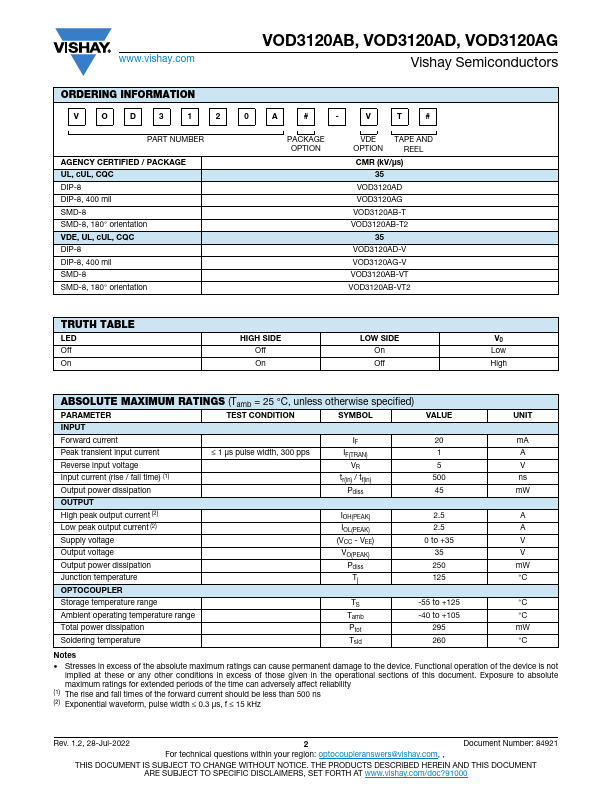

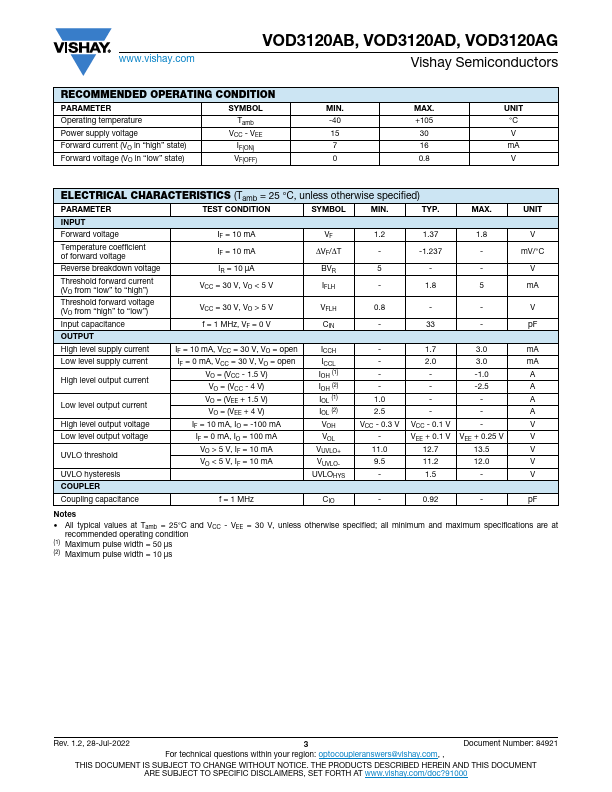

VOD3120AB Features

* 2.5 A minimum peak output current
* Rail-to-rail output stage
* 50 kV/μs common mode rejection ratio
* Wide operating range of 15 V to 30 V
* Industrial temperature range of -40 °C to +105 °C
* Material categorization: for definitions of compliance p

VOD3120AB Applications

* The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The VOD3120A is ideally suited for directly driving IGBTs with ratings up to 1200 V / 100 A. For IGBTs with higher ratings, the VOD3120A can be used to drive a discrete power stage
