VOD3120AD Datasheet - Vishay

2.5A Output Current IGBT and MOSFET Driver

VOD3120AD Features

* 2.5 A minimum peak output current

* Rail-to-rail output stage

* 0.5 μs maximum propagation delay time

* 35 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V

* Wide operating VCC range: 15 V to 30 V

* ICC = 3.5 mA maximum supply current

VOD3120AD General Description

The VOD3120A consists of a AlGaAs LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive volt.

VOD3120AD Datasheet (203.06 KB)

VOD3120AD Datasheet Preview — Preview of VOD3120AD PDF

Datasheet Details

Part number:

VOD3120AD

Manufacturer:

Vishay ↗

File Size:

203.06 KB

Description:

2.5a output current igbt and mosfet driver.

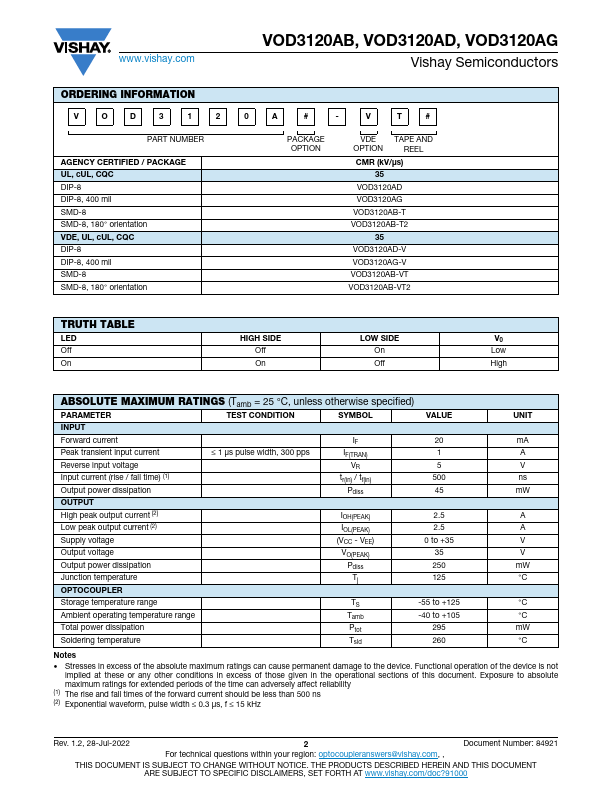

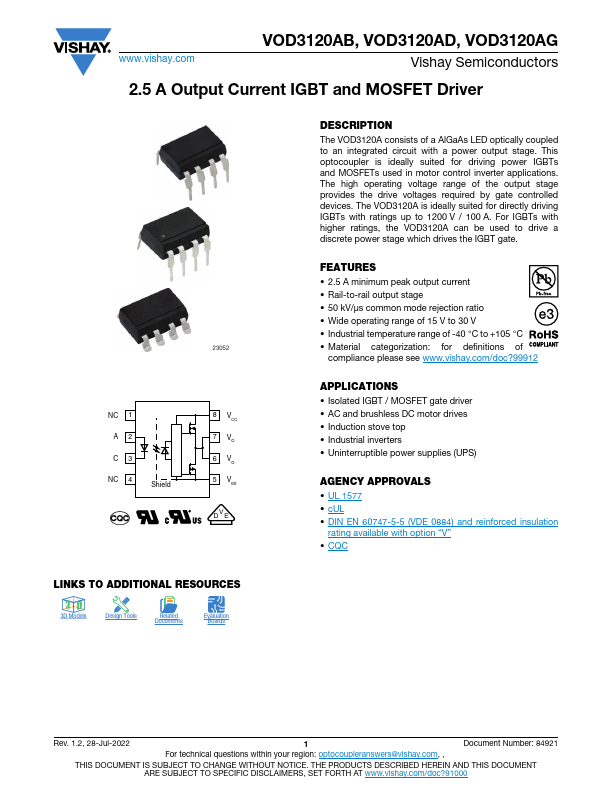

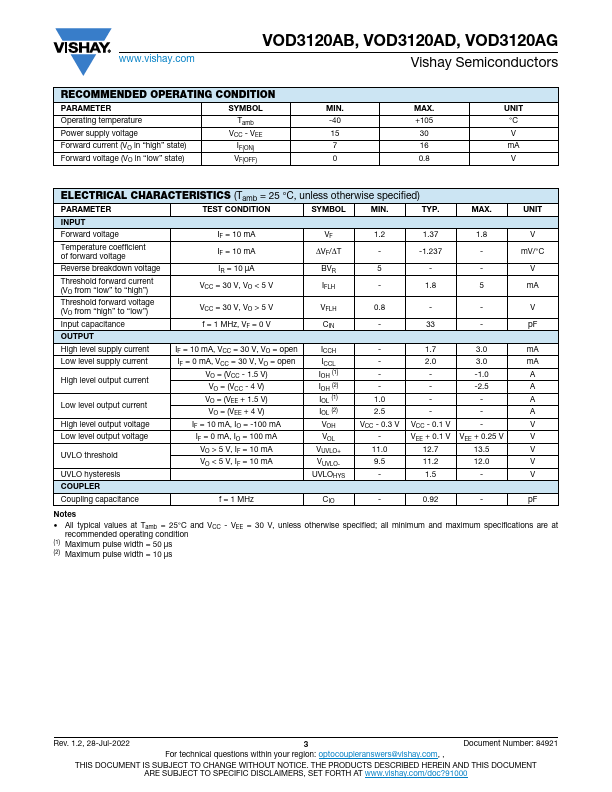

www.vishay.com VOD3120AB, VOD3120AD, VOD3120AG Vishay Semiconductors 2.5 A Output Current IGBT and MOSFET Driver NC 1 A2 C3 NC 4 Shield 8 VCC 7 V.
