VOD3120AG Datasheet, Driver, Vishay

✔ VOD3120AG Features

2.5 A minimum peak output current
Rail-to-rail output stage
0.5 μs maximum propagation delay time
35 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
W

✔ VOD3120AG Application

The high operating voltage range of the output stage provides the drive voltages required by gate controlle

PDF File Details

Vishay manufacturer logo

Part number:

VOD3120AG

Manufacturer:

Vishay ↗

File Size:

203.06kb

Download:

📄 Datasheet

Description:

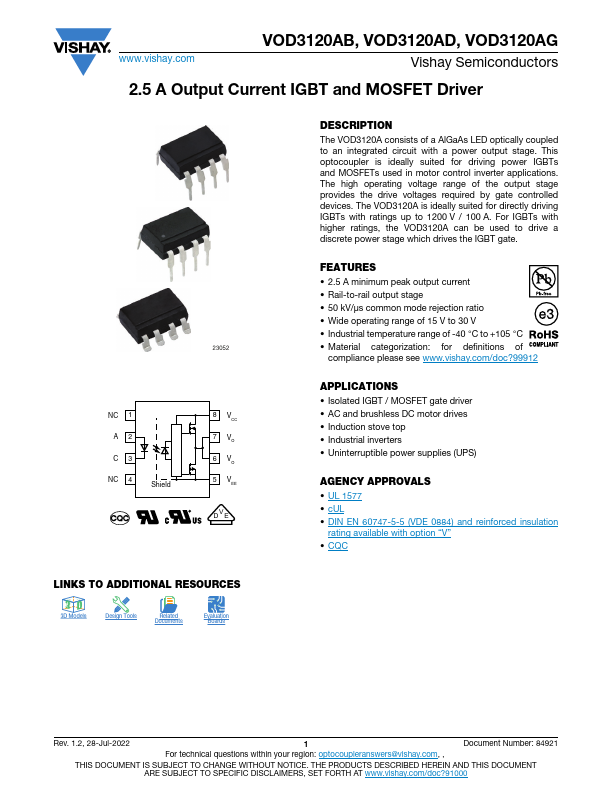

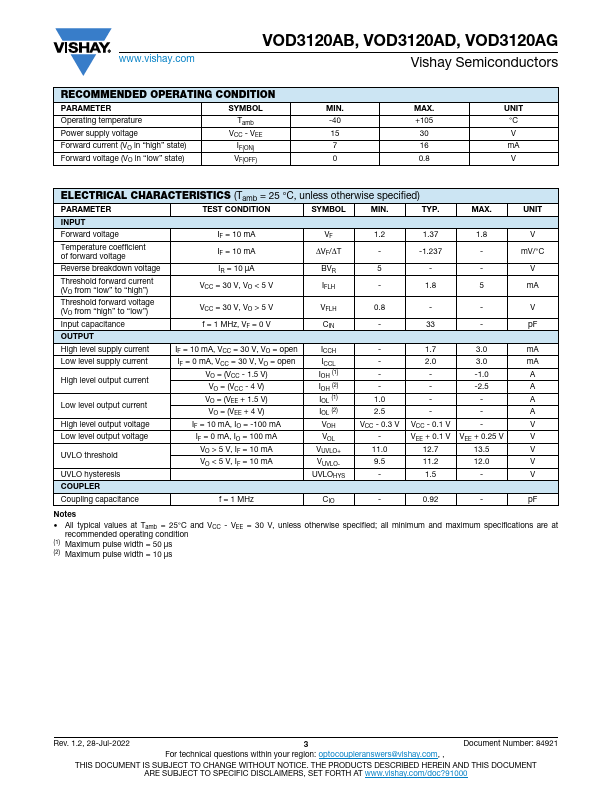

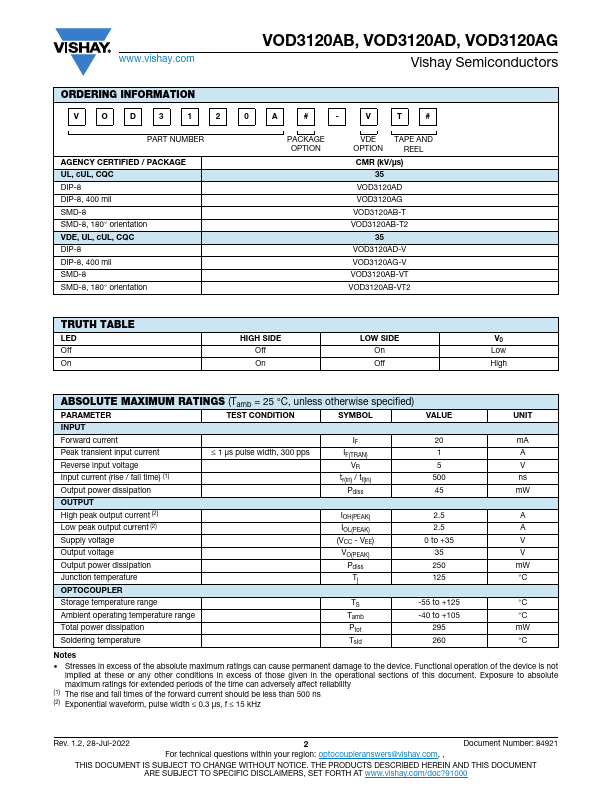

2.5a output current igbt and mosfet driver. The VOD3120A consists of a AlGaAs LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideal
