VS-50WQ03FN-M3 Schottky Rectifier

VS-50WQ03FN-M3 Description

VS-50WQ03FN-M3 Vishay Semiconductors Schottky Rectifier, 5.5 A Base cathode 4, 2 D-PAK (TO-252AA) 1 Anode 3 Anode PRODUCT SUMMARY Package IF(AV) .
The VS-50WQ03FN-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

VS-50WQ03FN-M3 Features

* Low forward voltage drop
* Guard ring for enhanced ruggedness and long term reliability
* Halogen-free according to IEC 61249-2-21 definition
* Popular D-PAK outline
* Small foot print, surface mountable
* High frequency operation
* Meets MSL

VS-50WQ03FN-M3 Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. VALUES 5.5 30 320 0.35 - 40 to 150 UNITS A V A V °C VOLTAGE RATINGS PARAMETER Maximum

📥 Download Datasheet

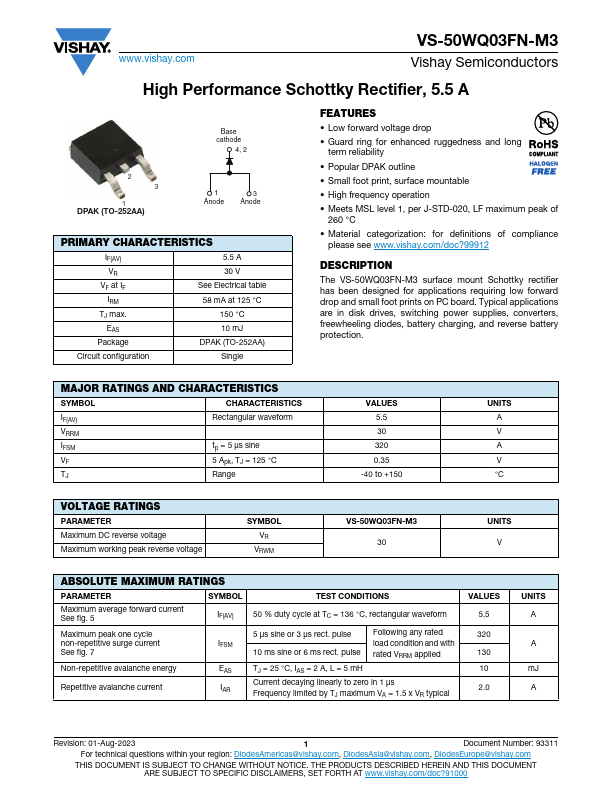

Preview of VS-50WQ03FN-M3 PDF

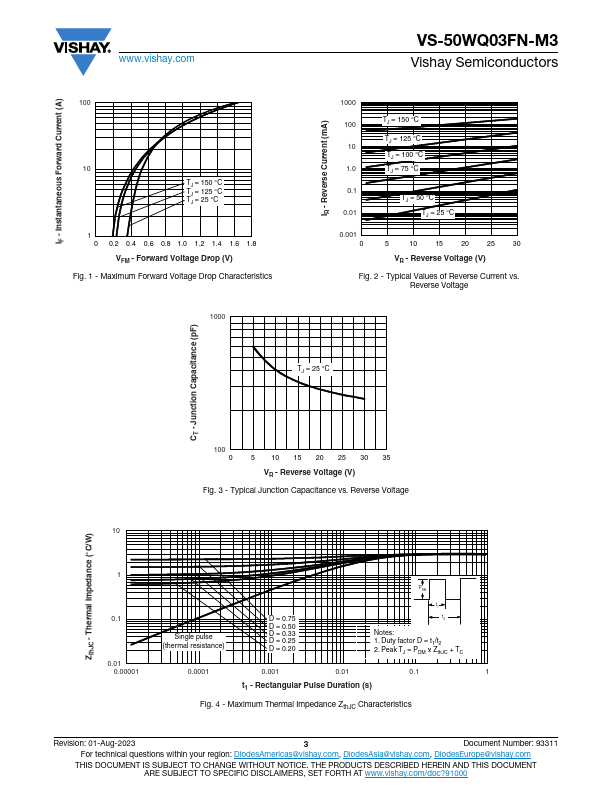

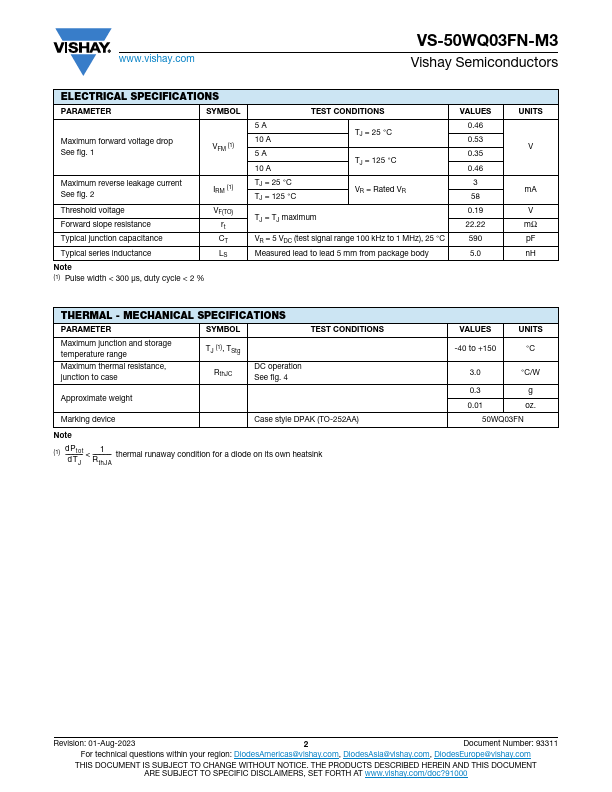

datasheet Preview Page 2 datasheet Preview Page 3
