VS-50WQ06FN-M3 - 5.5A High Performance Schottky Rectifier

Product Overview

Vishay

Part number	VS-50WQ06FN-M3
Manufacturer	Vishay
File Size	138.43 KB
Description	5.5A High Performance Schottky Rectifier
Datasheet	VS-50WQ06FN-M3 Datasheet
Additional preview pages of the VS-50WQ06FN-M3 datasheet.

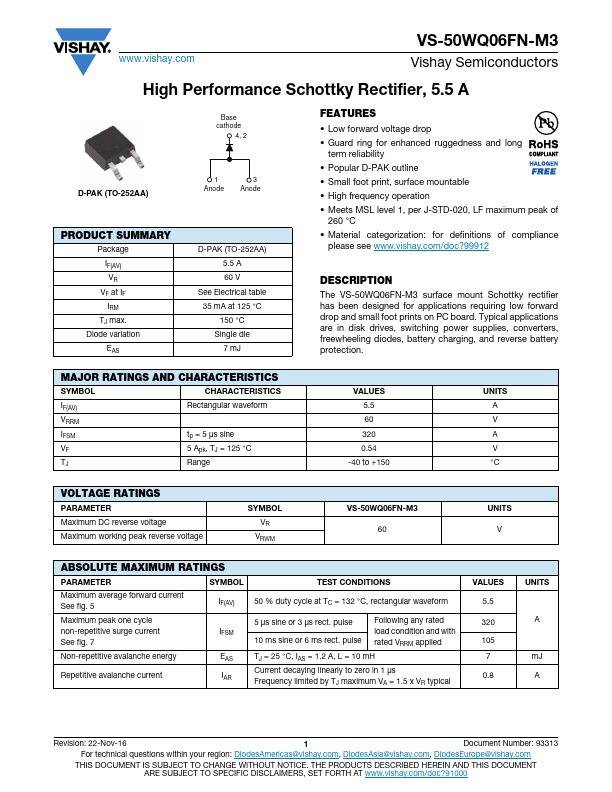

The VS-50WQ06FN-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

Low forward voltage drop.
Guard ring for enhanced ruggedness and long term reliability.
Popular D-PAK outline.
Small foot print, surface mountable.
High frequency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
