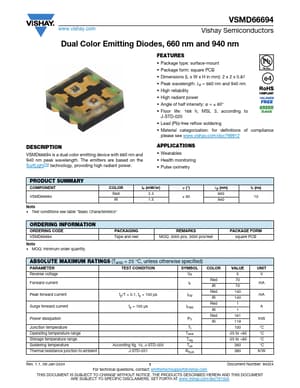

datasheet Preview Page 1 from Datasheet4u.com

VSMD66694 Dual Color Emitting Diodes

www.vishay.com VSMD66694 Vishay Semiconductors Dual Color Emitting Diodes, 660 nm and 940 nm .
VSMD66694 is a dual color emitting device with 660 nm and 940 nm peak wavelength.

VSMD66694-Vishay.pdf

VSMD66694 Datasheet Preview — Preview of VSMD66694 PDF

Datasheet Details

Part number:

VSMD66694

Manufacturer:

Vishay ↗

File Size:

173.42 KB

Description:

Dual Color Emitting Diodes

Features

* Package type: surface-mount
* Package form: square PCB
* Dimensions (L x W x H in mm): 2 x 2 x 0.87
* Peak wavelength: λp = 660 nm and 940 nm
* High reliability
* High radiant power
* Angle of half intensity: ϕ = ± 60°
* Floor life: 1

Applications

* Wearables
* Health monitoring
* Pulse oximetry PRODUCT SUMMARY COMPONENT VSMD66694 COLOR Red IR Ie (mW/sr) 2.3 1.5 ϕ (°) ± 60 Note
* Test conditions see table “Basic Characteristics“ λp (nm) 660 940 tr (ns) 10 ORDERING INFORMATION ORDERING CODE VSMD66694 Not
