VSSAF5L45 Surface Mount Trench MOS Barrier Schottky Rectifier

VSSAF5L45 Description

www.vishay.com VSSAF5L45 Vishay General Semiconductor Surface Mount Trench MOS Barrier Schottky Rectifier TMBS® eSMP® Series Top View Bottom View.

VSSAF5L45 Features

* Very low profile - typical height of 0.95 mm
* Ideal for automated placement
* Trench MOS Schottky technology
* Low power losses, high efficiency
* Low forward voltage drop
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q

VSSAF5L45 Applications

* For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 5.0 A TJ max. Package Circuit configuration 5.0 A 45 V 100 A 0.39 V 150 °C SlimSMA (DO-221AC) Single MECHANICAL DATA Case: S

📥 Download Datasheet

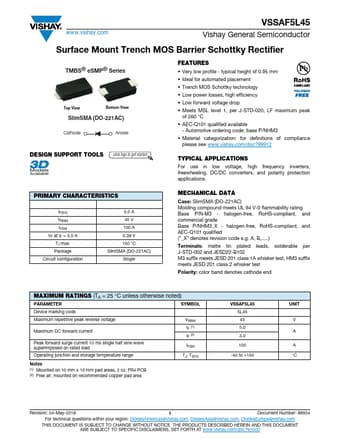

Preview of VSSAF5L45 PDF
