VSC830 Datasheet, Switch, Vitesse Semiconductor

VSC830 Features

  • Switch
  • Dual 2x2 Crosspoint Switch
  • 2.7Gb/s NRZ Data Bandwidth, 2.7GHz Signal Bandwidth
  • PECL/TTL-Compatible Control Inputs
  • PECL-Compatible High-Speed I/O

PDF File Details

Part number:

VSC830

Manufacturer:

Vitesse Semiconductor

File Size:

210.40kb

Download:

📄 Datasheet

Description:

2.7gb/s asynchronous dual 2x2 crosspoint switch. The VSC830 is a monolithic dual 2x2 asynchronous crosspoint switch, designed for critical signal path control and buffering applicati

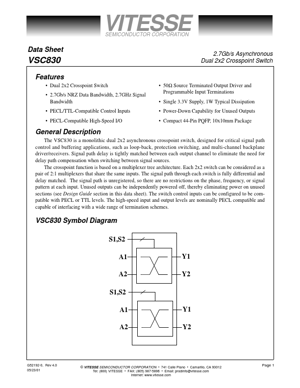

Datasheet Preview: VSC830 📥 Download PDF (210.40kb)
Page 2 of VSC830 Page 3 of VSC830

VSC830 Application

  • Applications such as loop-back, protection switching, and multi-channel backplane driver/receivers. Signal path delay is tightly matched between ea
