VSC837 Datasheet - Vitesse Semiconductor

3.2Gb/s 68x68 Crosspoint Switch

VSC837 Features

* 68 Input by 68 Output Crosspoint Switch 3.2Gb/s NRZ Data Bandwidth 66MHz Multi-Mode Programming Port TTL/2.5V CMOS Control I/O (3.3V tolerant) Programmable On-Chip I/O Termination Input Signal Activity (ISA) Monitoring Function In

VSC837 General Description

The VSC837 is a monolithic 68x68 asynchronous crosspoint switch, designed to carry broadband data streams. The non-blocking switch core is programmed through a triple-mode port interface that allows random access programming of each input/output port. A high degree of signal integrity is maintained .

VSC837 Datasheet (367.86 KB)

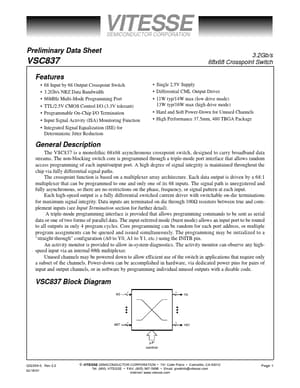

VSC837 Datasheet Preview — Preview of VSC837 PDF

Datasheet Details

Part number:

VSC837

Manufacturer:

Vitesse Semiconductor

File Size:

367.86 KB

Description:

3.2gb/s 68x68 crosspoint switch.
