VSC838 3.2Gb/s 36x37 Crosspoint Switch

📥 Download Datasheet Datasheet Preview Page 1

Description

www.DataSheet4U.com VITESSE SEMICONDUCTOR CORPORATION Preliminary Data Sheet VSC838 .
The VSC838 is a monolithic 36x36 asynchronous crosspoint switch, designed to carry broadband data streams.

📥 Download Datasheet

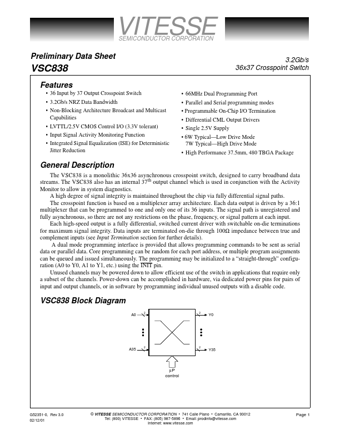

Preview of VSC838 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
VSC838
Manufacturer
Vitesse Semiconductor
File Size
324.24 KB
Datasheet
VSC838_VitesseSemiconductor.pdf
Description
3.2Gb/s 36x37 Crosspoint Switch

Features

* 36 Input by 37 Output Crosspoint Switch
* 3.2Gb/s NRZ Data Bandwidth
* Non-Blocking Architecture Broadcast and Multicast Capabilities
* LVTTL/2.5V CMOS Control I/O (3.3V tolerant)
* Input Signal Activity Monitoring Function
* Integrated Signal Equali

Applications

* that require only a subset of the channels. Power-down can be accomplished in hardware, via dedicated power pins for pairs of input and output channels, or in software by programming individual unused outputs with a disable code. VSC838 Block Diagram A0 2 2 Y0 A35 2 2 Y35 µP control G52351-0
