VSC835

34x34 Crosspoint Switch

VSC835 Features

* 34 Input by 34 Output Crosspoint Switch

* 2.5 Gbits/sec. NRZ Data Bandwidth

* TTL Compatible µP Interface

* Differential PECL Data Inputs

* On-chip 50Ω Input Terminations 2.5 Gbits/sec 34x34 Crosspoint Switch with Signal Detection

* 50Ω Source Term

VSC835 General Description

The VSC835 is a monolithic 34x34 asynchronous crosspoint switch, designed to carry broadband data streams at up to 2.5 Gbit/s. The non-blocking switch core is programmed through a parallel port interface that allows random access programming of each output port. A high degree of signal integrity is .

VSC835 Datasheet (187.44 KB)

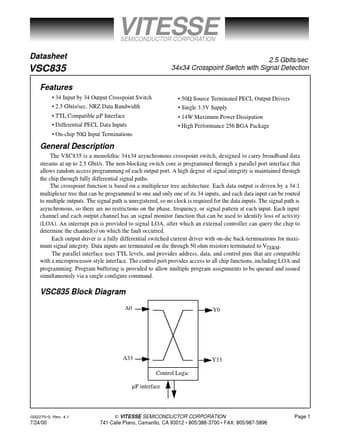

Preview of VSC835 PDF

Datasheet Details

Part number:

VSC835

Manufacturer:

Vitesse Semiconductor

File Size:

187.44 KB

Description:

34x34 crosspoint switch.
