2SA812 Datasheet - WEITRON

2SA812 PNP Transistor

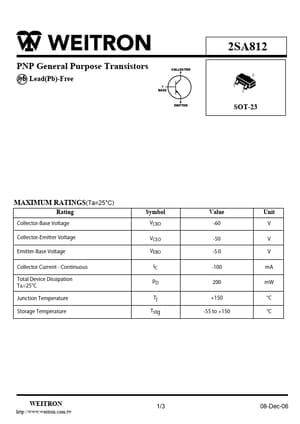

PNP General Purpose Transistors P b Lead(Pb)-Free 2SA812 1 2 3 SOT-23 MAXIMUM RATINGS(Ta=25°C) Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current - Continuous Total Device Dissipation TA=25°C Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PD Tj Tstg Value -60 -50 -5.0 -100 200 +150 -55 to +150 Unit V V V mA mW °C °C WEITRON http://www.weitron.com.tw 1/3 08-Dec-06 2SA812 ELECTRICAL CHARACTERISTICS Characteristics Collecto.
