SFX897WYF02 Surface Acoustic Wave Filter

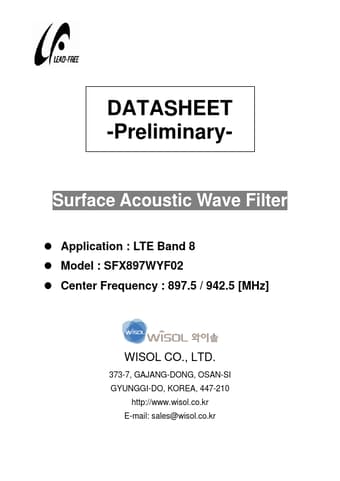

DATASHEET -Preliminary- Surface Acoustic Wave Filter Application : LTE Band 8 Model : SFX897WYF02 Center Frequency : 897.5 / 942.5 [MHz] WISOL CO., LTD. 373-7, GAJANG-DONG, OSAN-SI GYUNGGI-DO, KOREA, 447-210 http://www.wisol.co.kr E-mail: sales@wisol.co.kr Surface Acoustic Wave Filter LTE B8 DPX-Tx 897.5MHz LTE B8 DPX-Rx 942.5MHz 1.8×1.4×0.58mm3 8pin lay-out 1. OUTLINE DRAWING & RECOMMENDED PCB [Unit: mm] 1.8±0.1 7 5 1.4±0.1 XrXX OX 1 3 Version: SFX897WYF02 Prelimi.

SFX897WYF02 Datasheet (554.12 KB)
