DMW24D5-1500, DMW24S33-3000, 15 Watt DC/DC Converter

DMW Ultra Wide Series Single and Dual Output 15 Watt DC/DC Converter 4:1 Ultra Wide Input Voltage Range .

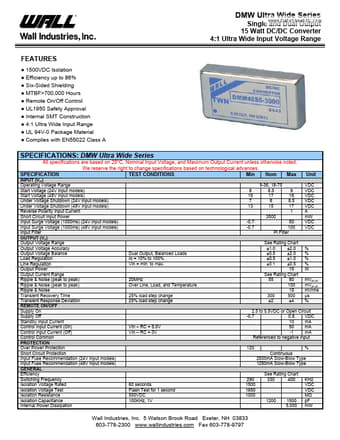

datasheet Preview Page 1 from Datasheet4u.com

DMW24S33-3000_WallIndustries.pdf

DMW24D5-1500 Datasheet Preview — This datasheet PDF includes multiple part numbers: DMW24D5-1500, DMW24S33-3000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DMW24D5-1500, DMW24S33-3000

Manufacturer:

Wall Industries

File Size:

272.84 KB

Description:

15 Watt DC/DC Converter

Note:

This datasheet PDF includes multiple part numbers: DMW24D5-1500, DMW24S33-3000.
Please refer to the document for exact specifications by model.

Features

* 1500VDC Isolation
* Efficiency up to 86%
* Six-Sided Shielding
* MTBF>700,000 Hours
* Remote On/Off Control
* UL1950 Safety Approval
* Internal SMT Construction
* 4:1 Ultra Wide Input Range
* UL 94V-0 Package Material
* Complies with EN55022 Class A SPECIFI

Applications

* where power is supplied over long lines and output loading is high, it may be necessary to use a capacitor at the input to ensure startup. Capacitor mounted close to the power module helps ensure stability of the unit, it is recommended to use a good quality low Equivalent Series Resistance (ESR < 1
