2SA1774 Datasheet - Weitron Technology

2SA1774 PNP General Purpose Transistors

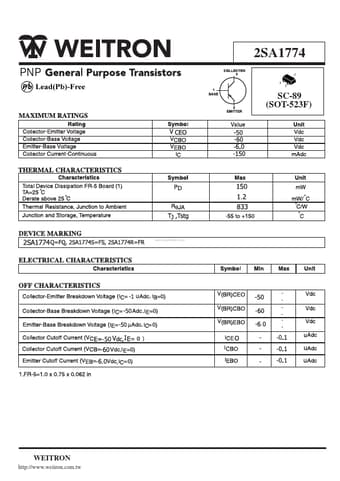

2SA1774 PNP 1 2 3 3 SC-89 (SOT-523F) www.DataSheet4U.com WEITRON http://www.weitron.com.tw 2SA1774 ELECTRICAL CHARACTERISTICS (TA=25 C unless otherwise noted) (Countinued) Characteristics Symbol Min Typ Max Unit ON CHARACTERISTICS DC Current Gain (IC=-1 mAdc, VCE=-6.0 Vdc) Collector-Emitter Saturation Voltage (IC=-50 mAdc, IB=-5mAdc) Output Capacitance (VCB =-12Vdc, I E =0A, f=1MHZ) Current-Gain-Bandwidth Product (IE=2 mAdc, VCE=-12 Vdc,f=30 MHZ) hFE VCE(sat) 120 - - 560 -0.5 Vdc PF C.

2SA1774_WeitronTechnology.pdf

Preview of 2SA1774 PDF
2SA1774 Datasheet Preview Page 2 2SA1774 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1774

Manufacturer:

Weitron Technology

File Size:

333.26 KB

Description:

Pnp general purpose transistors.
