2SA1773

PNP Transistor

2SA1773 General Description


*High breakdown voltage: V(BR)CEO >-400V @IC=-1mA
*Large current capacity
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*Designed for high current switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE U.

2SA1773 Datasheet (208.66 KB)

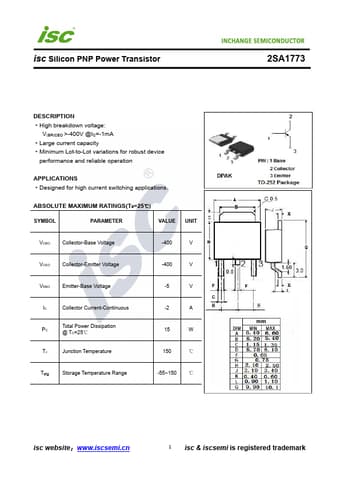

Preview of 2SA1773 PDF

Datasheet Details

Part number:

2SA1773

Manufacturer:

INCHANGE

File Size:

208.66 KB

Description:

Pnp transistor.
