WED3DG64126V-D2 Datasheet - White Electronic Designs Corporation

WED3DG64126V-D2 1GB - 128M X 64 SDRAM Unbuffered

The WED3DG64126V is a 128Mx64 synchronous DRAM module which consists of sixteen 64Mx8 SDRAM components in TSOP11 package and one 2K EEPROM in an 8- pin TSSOP package for Serial Presence Detect which are mounted on a 168 Pin DIMM multilayer FR4 Substrate. PIN CONFIGURATIONS (FRONT SIDE/BACK SIDE) Pi.

WED3DG64126V-D2 Features

* n Burst Mode Operation n Auto and Self Refresh capability n LVTTL compatible inputs and outputs n Serial Presence Detect with EEPROM n Fully synchronous: All signals are registered on the positive edge of the system clock n Programmable Burst Lengths: 1, 2, 4, 8 or Full Page n 3.3 volt 6 0.3v Power

WED3DG64126V-D2 Datasheet (490.19 KB)

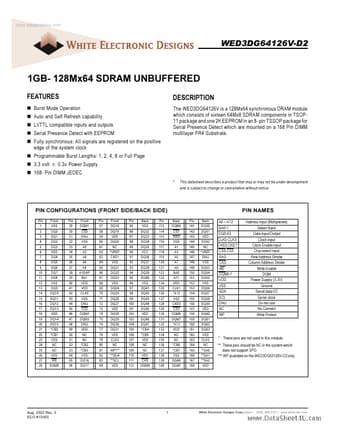

Preview of WED3DG64126V-D2 PDF
WED3DG64126V-D2 Datasheet Preview Page 2 WED3DG64126V-D2 Datasheet Preview Page 3

Datasheet Details

Part number:

WED3DG64126V-D2

Manufacturer:

White Electronic Designs Corporation

File Size:

490.19 KB

Description:

1gb - 128m x 64 sdram unbuffered.
