WED3DG6419V-D2 Datasheet - White Electronic Designs Corporation

128MB - 16Mx64 SDRAM UNBUFFERED

WED3DG6419V-D2 Features

* Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3 volt ± 0.3v Power Supply 168 pin

WED3DG6419V-D2 General Description

The WED3DG6419V is a 16Mx64 synchronous DRAM module which consists of sixteen 8Mx8 SDRAM components in TSOP II package and one 2K EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 168 pin DIMM multilayer FR4 Substrate. * This product is subject to change without .

WED3DG6419V-D2 Datasheet (133.33 KB)

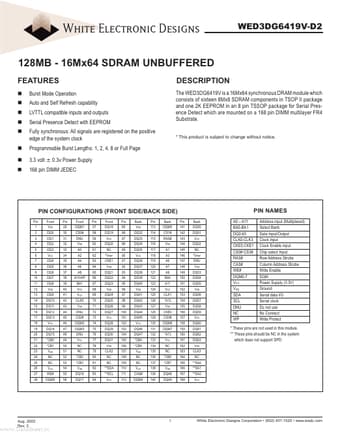

Preview of WED3DG6419V-D2 PDF

Datasheet Details

Part number:

WED3DG6419V-D2

Manufacturer:

White Electronic Designs Corporation

File Size:

133.33 KB

Description:

128mb - 16mx64 sdram unbuffered.
