WED3DG6466V-D1 - 512MB -64Mx64 SDRAM UNBUFFERED

Product Overview

White Electronic Designs

Datasheet Details

Part number	WED3DG6466V-D1
Manufacturer	White Electronic Designs
File Size	179.25 KB
Description	512MB -64Mx64 SDRAM UNBUFFERED
Datasheet	WED3DG6466V-D1 Datasheet
Note	This datasheet PDF includes multiple part numbers: WED3DG6466V-D1, WED3DG6466V-JD1. Please refer to the document for exact specifications by model.

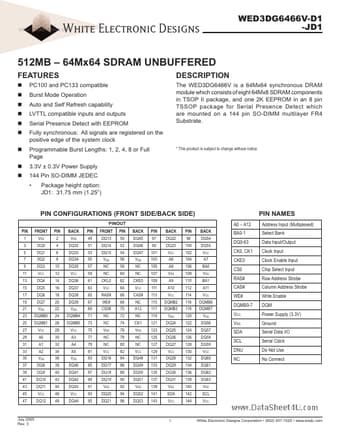

Additional preview pages of the WED3DG6466V-D1 datasheet.

Product details

Description

The WED3DG6466V is a 64Mx64 synchronous DRAM module which consists of eight 64Mx8 SDRAM components in TSOP II package, and one 2K EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 144 pin SO-DIMM multilayer FR4 Substrate.

Features

PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Supply 144 Pin SO-DIMM JEDEC.
Package height option: JD1: 31.75 mm (1.25”).
This product is subject to change without notice.
