WED2DG472512V-D2

DUAL KEY DIMM

WED2DG472512V-D2 Features

* 4x512Kx72 Synchronous, Synchronous Burst Pipeline Architecture; Single Cycle Deselect Linear and Sequential Burst Support via MODE pin Clock Controlled Registered Module Enable (EM#) Clock Controlled Registered Bank Enables (E1#, E2#, E3#, E4#) Clock Controlled Byte Write Mode Enable (BWE#) Clock Co

WED2DG472512V-D2 General Description

The WED2DG472512V is a Synchronous/Synchronous Burst SRAM, 84 position Dual Key; Double High DIMM (168 contacts) Module, organized as 4x512Kx72. The Module contains sixteeen (16) Synchronous Burst RAM devices, packaged in the industry stan dard JEDEC 14mmx20mm TQFP placed on a Multilayer FR4 Substra.

WED2DG472512V-D2 Datasheet (207.33 KB)

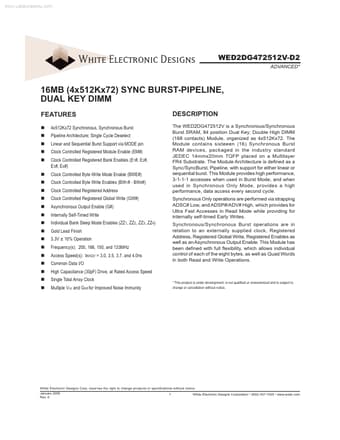

Preview of WED2DG472512V-D2 PDF

Datasheet Details

Part number:

WED2DG472512V-D2

Manufacturer:

White Electronic

File Size:

207.33 KB

Description:

Dual key dimm.
