WED2DL32512V Datasheet - White Electronic

WED2DL32512V 512Kx32 Synchronous Pipeline Burst SRAM

The WEDC SyncBurst - SRAM family employs high-speed, lowpower CMOS designs that are fabricated using an advanced CMOS process. WEDC’s 16Mb SyncBurst SRAMs integrate two 512K x 16 SRAMs into a single BGA package to provide 512K x 32 configuration. All synchronous inputs pass through registers control.

WED2DL32512V Features

* s Fast clock speed: 200, 166, 150 & 133MHz s Fast access times: 2.5ns, 3.5ns, 3.8ns & 4.0ns s Fast OE access times: 2.5ns, 3.5ns, 3.8ns 4.0ns s Single +3.3V power supply (VDD) s Separate +3.3V or +2.5V isolated output buffer supply (VDDQ) s Snooze Mode for reduced-power standby s Single-cycle desele

WED2DL32512V_WhiteElectronic.pdf

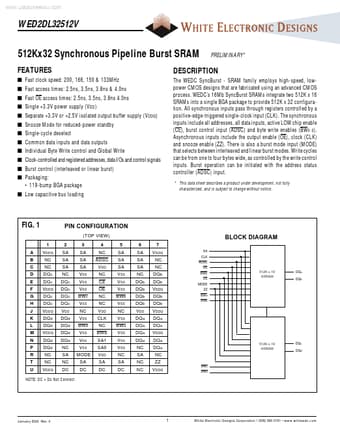

Preview of WED2DL32512V PDF
WED2DL32512V Datasheet Preview Page 2 WED2DL32512V Datasheet Preview Page 3

Datasheet Details

Part number:

WED2DL32512V

Manufacturer:

White Electronic

File Size:

137.64 KB

Description:

512kx32 synchronous pipeline burst sram.
