WED2ZL64512S - Synchronous Pipeline NBL SRAM

WED2ZL64512S Description

www.DataSheet4U.com White Electronic Designs 512K x 64 Synchronous Pipeline NBL SRAM .
The WEDC SyncBurst - SRAM family employs highspeed, low-power CMOS designs that are fabricated using an advanced CMOS process.

WED2ZL64512S Features

* Fast clock speed: 166, 150, 133, and 100MHz
* Fast access times: 3.5ns, 3.8ns, 4.2ns, and 5.0ns
* Fast OE# access times: 3.5ns, 3.8ns, 4.2ns, and 5.0ns
* Seperate +2.5V ± 5% power supplys for core I/O (VCC + VCCQ)
* Double Word Write Control
* Clock-controlled and registere

📥 Download Datasheet

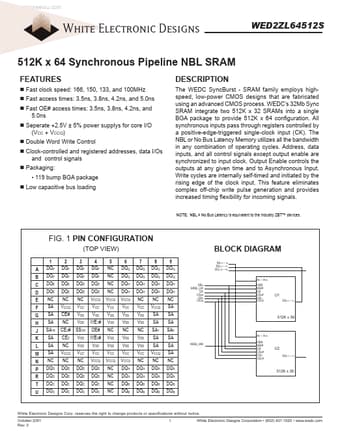

Preview of WED2ZL64512S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WED2ZL64512S
Manufacturer
White Electronic
File Size
496.87 KB
Datasheet
WED2ZL64512S_WhiteElectronic.pdf
Description
Synchronous Pipeline NBL SRAM
