WED2ZLRSP01S

Dual Array Synchronous Pipeline Burst NBL SRAM

WED2ZLRSP01S Datasheet (376.33 KB)

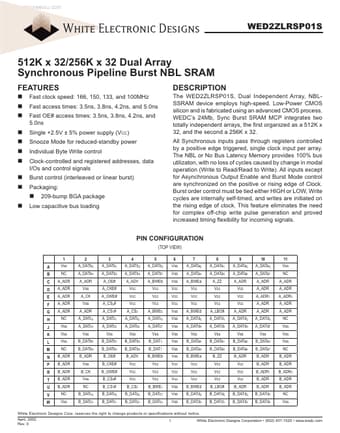

Preview of WED2ZLRSP01S PDF Datasheet

Datasheet Details

Part number:

WED2ZLRSP01S

Manufacturer:

White Electronic

File Size:

376.33 KB

Description:

Dual array synchronous pipeline burst nbl sram

WED2ZLRSP01S Features

* Fast clock speed: 166, 150, 133, and 100MHz Fast access times: 3.5ns, 3.8ns, 4.2ns, and 5.0ns Fast OE# access times: 3.5ns, 3.8ns, 4.2ns, and 5.0ns Single +2.5V ± 5% power supply (VCC) Snooze Mode for reduced-standby power Individual Byte Write control Clock-controlled and registered addresses, data

WED2ZLRSP01S General Description

The WED2ZLRSP01S, Dual Independent Array, NBLSSRAM device employs high-speed, Low-Power CMOS silicon and is fabricated using an advanced CMOS process. WEDC’s 24Mb, Sync Burst SRAM MCP integrates two totally independent arrays, the first organized as a 512K x 32, and the second a 256K x 32. All Synchr.
