W3DG7216V-AD1 Datasheet - White Electronic Designs

W3DG7216V-AD1 SDRAM UNBUFFERED

The W3DG7216V is a 16Mx72 synchronous DRAM module which consists of nine 16Meg x 8 SDRAM components in TSOP II package, and one 2Kb EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 144 pin SO-DIMM multilayer FR4 Substrate. * This product is under development, i.

W3DG7216V-AD1 Features

* PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.

W3DG7216V-AD1_WhiteElectronicDesigns.pdf

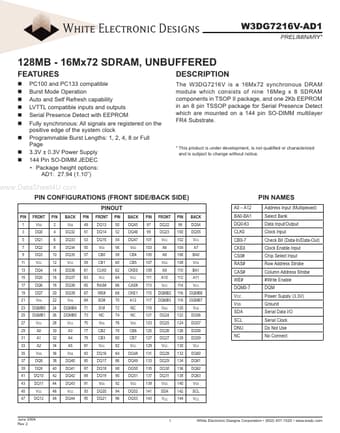

Preview of W3DG7216V-AD1 PDF
W3DG7216V-AD1 Datasheet Preview Page 2 W3DG7216V-AD1 Datasheet Preview Page 3

Datasheet Details

Part number:

W3DG7216V-AD1

Manufacturer:

White Electronic Designs

File Size:

145.03 KB

Description:

Sdram unbuffered.
