W3DG7216V-D1

SDRAM UNBUFFERED

W3DG7216V-D1 Features

* PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.

W3DG7216V-D1 General Description

The W3DG7216V is a 16Mx72 synchronous DRAM module which consists of nine 16Meg x 8 SDRAM components in TSOP II package, and one 2Kb EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 144 pin SO-DIMM multilayer FR4 Substrate.
* This product is under development, i.

W3DG7216V-D1 Datasheet (178.73 KB)

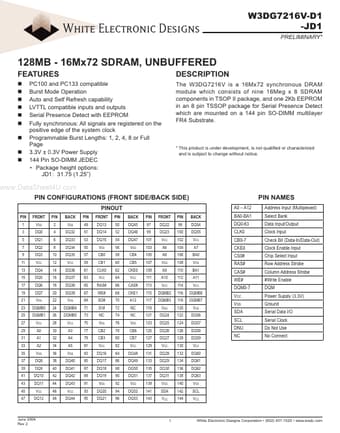

Preview of W3DG7216V-D1 PDF

Datasheet Details

Part number:

W3DG7216V-D1

Manufacturer:

White Electronic Designs

File Size:

178.73 KB

Description:

Sdram unbuffered.
