W3DG7216V-D2 Datasheet - White Electronic Designs

W3DG7216V-D2 SDRAM UNBUFFERED

The W3DG7216V is a 16Mx72 synchronous DRAM module which consists of nine 16Mx8 SDRAM components in TSOP II package, two 18 bit Drive ICs for input control signal and one 2Kb EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 168 pin DIMM multilayer FR4 Substrate. www.

W3DG7216V-D2_WhiteElectronicDesigns.pdf

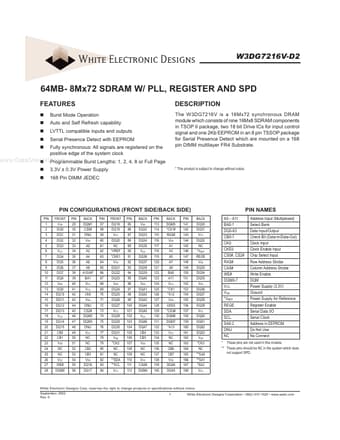

Preview of W3DG7216V-D2 PDF
W3DG7216V-D2 Datasheet Preview Page 2 W3DG7216V-D2 Datasheet Preview Page 3

Datasheet Details

Part number:

W3DG7216V-D2

Manufacturer:

White Electronic Designs

File Size:

99.14 KB

Description:

Sdram unbuffered.
