W3DG7216V-JD1, W3DG7216V-D1 Datasheet - White Electronic Designs

W3DG7216V-JD1, W3DG7216V-D1, SDRAM UNBUFFERED

White Electronic Designs 128MB - 16Mx72 SDRAM, UNBUFFERED .
The W3DG7216V is a 16Mx72 synchronous DRAM module which consists of nine 16Meg x 8 SDRAM components in TSOP II package, and one 2Kb EEPROM in an 8 pin.

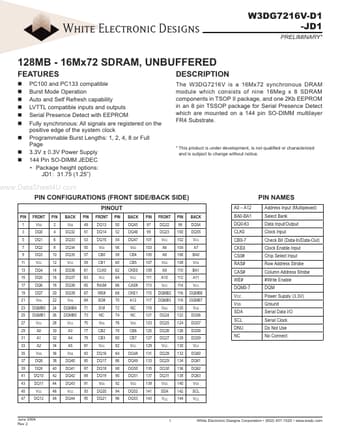

datasheet Preview Page 1 from Datasheet4u.com

W3DG7216V-D1_WhiteElectronicDesigns.pdf

W3DG7216V-JD1 Datasheet Preview — This datasheet PDF includes multiple part numbers: W3DG7216V-JD1, W3DG7216V-D1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

W3DG7216V-JD1, W3DG7216V-D1

Manufacturer:

White Electronic Designs

File Size:

178.73 KB

Description:

SDRAM UNBUFFERED

Note:

This datasheet PDF includes multiple part numbers: W3DG7216V-JD1, W3DG7216V-D1.
Please refer to the document for exact specifications by model.

Features

* PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.
