W24258-70LL, W24258-55LL, 32K x8 CMOS STATIC RAM

W24258/LL GENERAL .
32K × 8 CMOS STATIC RAM The W24258/LL is a normal speed, very low power CMOS static RAM organized as 32768 × 8 bits that operates on a single 5-volt.

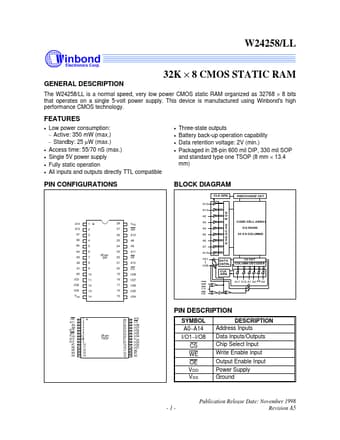

datasheet Preview Page 1 from Datasheet4u.com

W24258-55LL-Winbond.pdf

W24258-70LL Datasheet Preview — This datasheet PDF includes multiple part numbers: W24258-70LL, W24258-55LL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

W24258-70LL, W24258-55LL

Manufacturer:

Winbond

File Size:

176.71 KB

Description:

32K x8 CMOS STATIC RAM

Note:

This datasheet PDF includes multiple part numbers: W24258-70LL, W24258-55LL.
Please refer to the document for exact specifications by model.

Features

* Low power consumption:
* Active: 350 mW (max. )
* Standby: 25 µW (max. )
* Access time: 55/70 nS (max. )
* Single 5V power supply
* Fully static operation
* All inputs and outputs directly TTL compatible
* Three-state outputs
