W24258S-70LL, W24258-55LL 32K x8 CMOS STATIC RAM

W24258S-70LL Description

W24258/LL GENERAL .
32K × 8 CMOS STATIC RAM The W24258/LL is a normal speed, very low power CMOS static RAM organized as 32768 × 8 bits that operates on a single 5-volt.

W24258S-70LL Features

* Low power consumption:
* Active: 350 mW (max. )
* Standby: 25 µW (max. )
* Access time: 55/70 nS (max. )
* Single 5V power supply
* Fully static operation
* All inputs and outputs directly TTL compatible
* Three-state outputs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: W24258S-70LL, W24258-55LL. Please refer to the document for exact specifications by model.

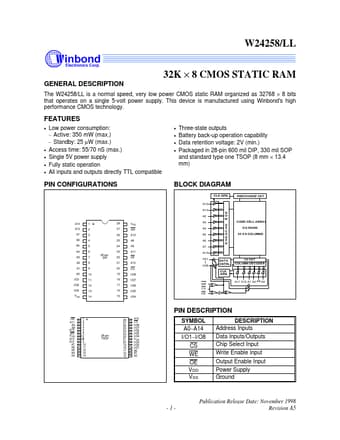

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W24258S-70LL, W24258-55LL
Manufacturer
Winbond
File Size
176.71 KB
Datasheet
W24258-55LL-Winbond.pdf
Description
32K x8 CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: W24258S-70LL, W24258-55LL.
Please refer to the document for exact specifications by model.
