Part number:
W24258Q-70LL
Manufacturer:
Winbond
File Size:
176.71 KB
Description:
32k x8 cmos static ram.

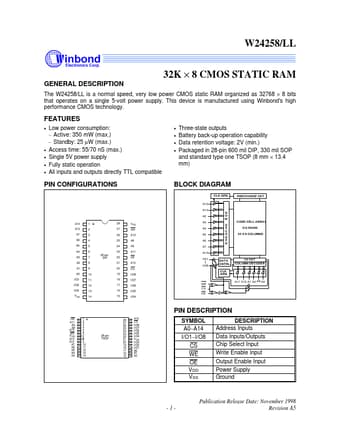

W24258Q-70LL Datasheet (176.71 KB)
* Low power consumption:
* Active: 350 mW (max.)
* Standby: 25 µW (max.)
* Access time: 55/70 nS (max.)
* Single 5V power supply
* Fully static operation
* All inputs and outputs directly TTL compatible
* Three-state outputs
W24258Q-70LL Datasheet (176.71 KB)
W24258Q-70LL
Winbond
176.71 KB
32k x8 cmos static ram.
