W24L01 Datasheet, Ram, Winbond

W24L01 Features

  • Ram
  • Low power consumption
  • Access time: 55 nS /70 nS
  • 2.7V to 3.6V supply voltage
  • Fully static operation
  • All inputs and outputs directly TTL

PDF File Details

Part number:

W24L01

Manufacturer:

Winbond

File Size:

178.38kb

Download:

📄 Datasheet

Description:

128k x 8 cmos static ram. The W24L01 is a normal-speed, very low-power CMOS static RAM organized as 131072 × 8 bits that operates on a wide voltage range from

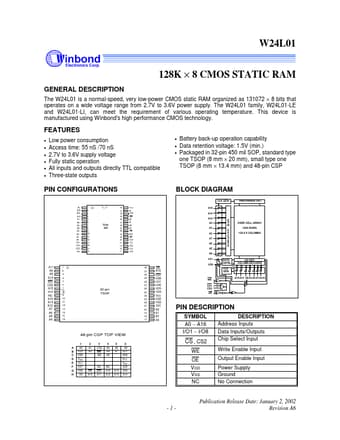

Datasheet Preview: W24L01 📥 Download PDF (178.38kb)
Page 2 of W24L01 Page 3 of W24L01
